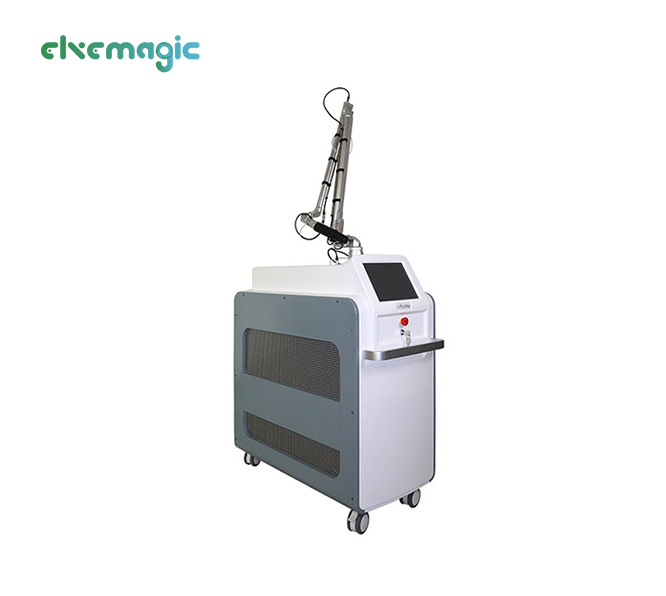

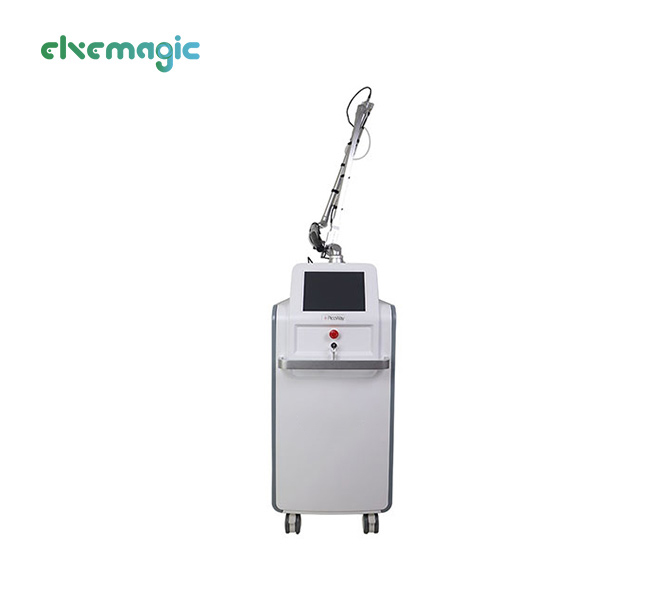

Picosecond Laser EM 303

  • Size (excluding joint arm, high*length*width): 142*72*120cm
  • Machine Net Weight: 68kg
  • Joint Arm: 4kg
  • Total Weight: 117kg
  • Power: 2000W
  • Over-current Protector Model: 220V,10A
  • Laser Wavelength: 1064nm; 755mm; 532nm
  • Laser Output Frequency: 1-10hz
  • Spot Diameter: 1-10mm adjust
  • Maximum Output Energy Of Single Pulse: 1064nm(50-1200mj); 755mm(40-1200mj); 532nm(20-600mj)
  • Eye Hazard Distance: NOHD 100m, In the seal of the operating room for the eyes are harmful, must wear protective glasses!
  • Cooling Water: Use deionized water or pure distilled water
  • Cooling Mode: Built in closed cycle water cooled type

product description

The PicoSecond Laser uses ultra-short pulses (one trillionth of a second in length) to hit the melanin with a great pressure, the melanin shatters into tiny dust-like particles. Because the particles are so small, they are more readily absorbed and eliminated by the body. This can mean better clearance of the melanin and less treatments overall.

PicoSecond Laser is a quick and easy non-surgical, non-invasive laser skin treatment for the body including chest or decollete, face, hands, legs, and more.

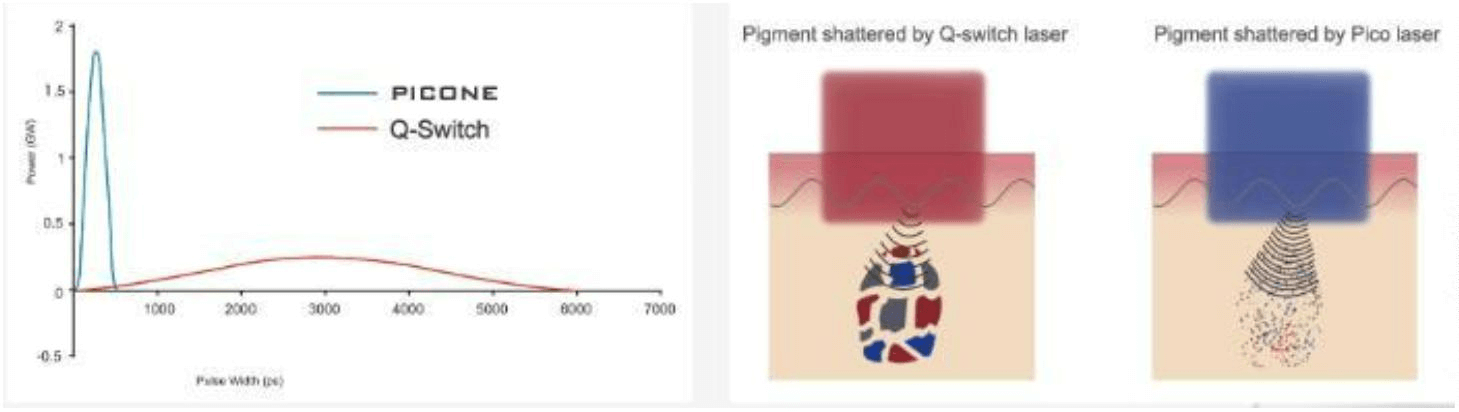

Picosecond laser VS Q-switch:

At Picosecond laser pulse width, the generated photomechanical stress target pigment particle,making its volume expansion instantaneously and resulting in breakup of target into micro-particles, which is much easier for phagocytes to clear. Q-switch laser has pulse width of 5ns or more, its photomechanical stress is not efficient compared to picosecond laser, it creates large particles, and with long pulse width, scattering energy goes toward surrounding tissue,resulting in risks of thermal damage.

Therefore, Picosecond laser provide a more effective and more safe treatment than Q-switch laser.

parameter

Size (excluding joint arm, high*length*width)

142*72*120cm

Machine Net Weight

68kg

Joint Arm

4kg

Total Weight

117kg

Power

2000W

Over-current Protector Model

220V,10A

Laser Wavelength

1064nm; 755mm; 532nm

Laser Output Frequency

1-10hz

Spot Diameter

1-10mm adjust

Maximum Output Energy Of Single Pulse

1064nm(50-1200mj); 755mm(40-1200mj); 532nm(20-600mj)

Cooling Mode

Built in closed cycle water cooled type

Cooling Water

Use deionized water or pure distilled water

Eye Hazard Distance

NOHD 100m, In the seal of the operating room for the eyes are harmful, must wear protective glasses!
